進口二維異質轉移系統2D Heterostructure Transfer System
2D Heterostructure Transfer System
用于高質量二維晶體異質結構制作的人工傳輸系統。

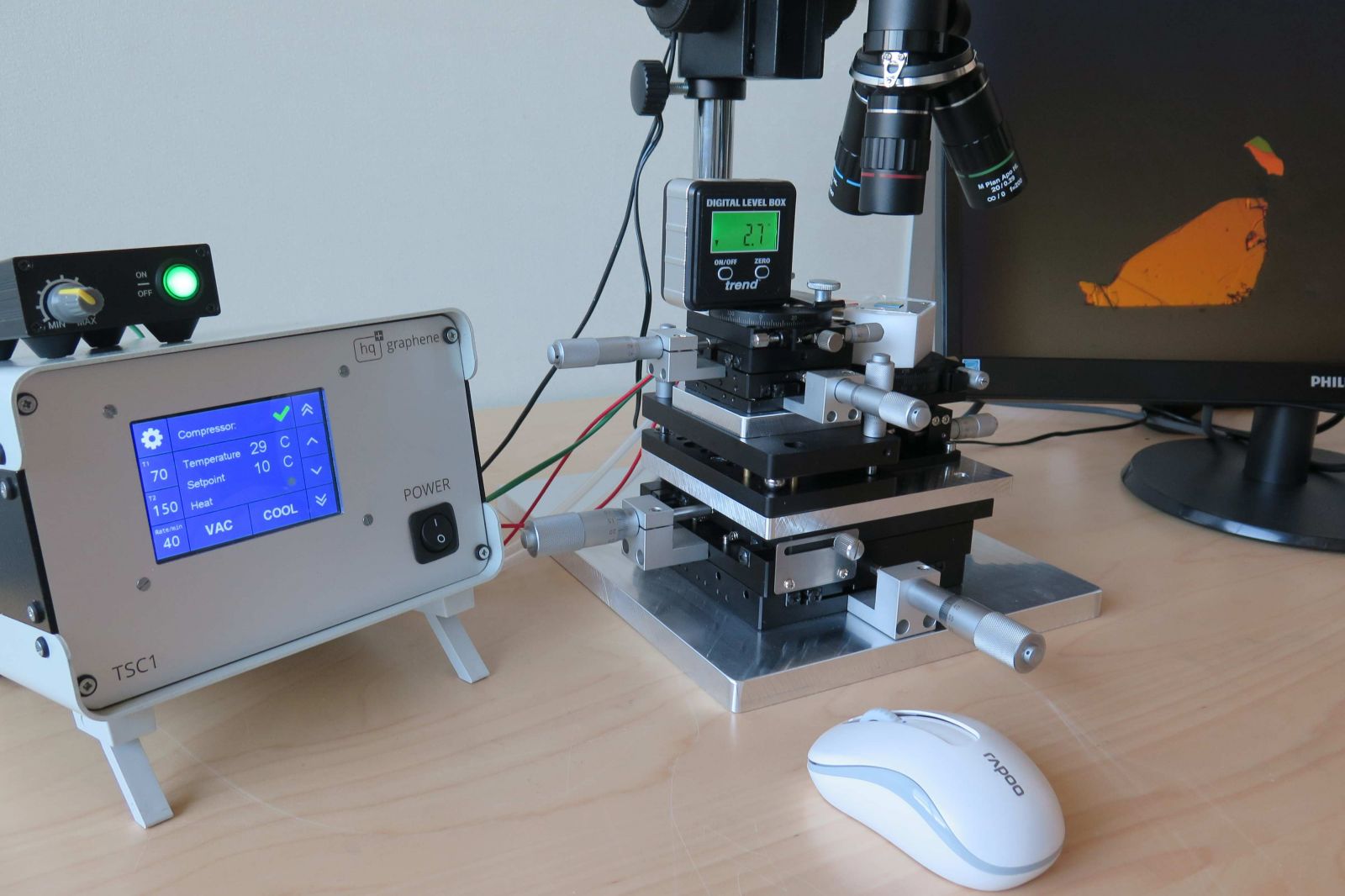

The manual transfer system contains all the required elements for the fabrication of a high quality 2D heterostructure and also twisted graphene (manual rotation stage with 0.015 degrees resolution): A high resolution optical microscope with CCD camera, mechanical stage, vacuum chuck which can be heated up to 200C.
The compact design allows for easy placement inside a glove box, providing the option to work with air sensitive materials.
Designed and assembled at HQ Graphene.
1-year guarantee.
This manual transfer system is designed to accurately place a stamp on a substrate, which can be moved relative to each other not only in the x-, y- and z-directions, but also by tilting and rotating. This allows the highest degree of freedom in the alignment of crystal flakes when fabricating heterostructures. The substrate is fixated with vacuum and can be heated during the process. The compact design allows for easy placement inside a glove box, providing the option to work with air sensitive materials.
